Team LiveKit: Desktop Robot Assistant

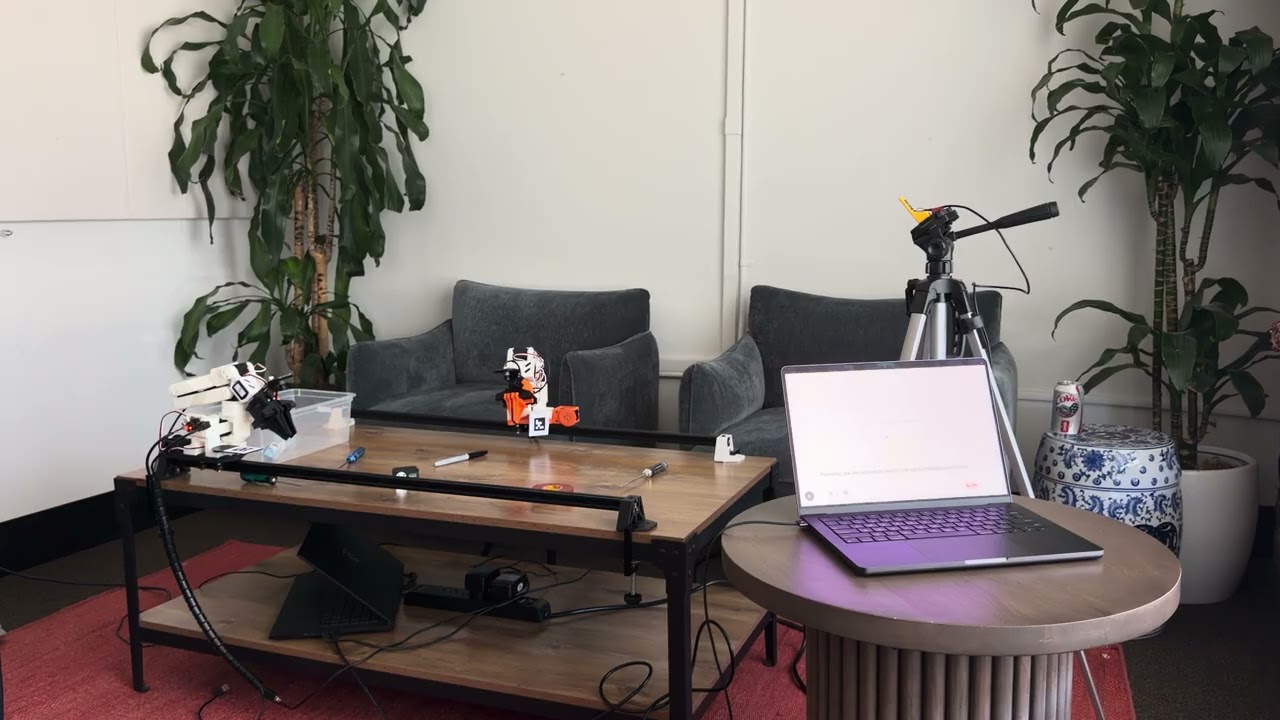

Demo video can be found here: https://youtu.be/6K4rvcU73uY

We built a system of robots for assisting you on your desktop. You can do tasks such as desk cleaning or organization just by talking to a voice agent.

For example, you can tell the robot to "put the screwdriver away" and it would pick up the screwdriver on one end of the table and put it to the bin at the other end of the table.

Behind the scene this is the work of multiple systems working together.

First, the robots are orchestrated by a voice agent running on LiveKit. This agent has access to the overview of the table and can use such to make plans based on user-given commands.

If the user give a task like clean the table, the agent would first check what objects are on the table and utilize the tools it have to execute the goal.

The agent has access to 3 tools.

The first tool is move_to, which is a PID loop for controlling the robot slider to any object on the table. The robot is localized using an April tag while the object is localized using a VLM.

The second tool is run_policy, which allows us to run any of our trained ACT policy on demand.

We collected data and trained 2 policy at SPC:

• Pick up is an ACT policy trained on 200 episodes of picking random stuff up at SPC. It is used when the agent wants to pick stuff on the table. We also trained a sparse reward model so the agent knows when the pick up policy has finished and can stop it.
• Put down is another policy trained on 50 episodes of putting down stuff. However, it didn't work well so we just sample trajectories from the dataset randomly.

The third tool is run_molmo, which utilizes MolmoACT2, a generalized VLA that can do anything given. We fine-tuned this on all the dataset we gathered at SPC so the model can better adapt to our embodiment. Results show that the model can reliably pick up and localize objects that was not in trained dataset, showing its capabilities to generalize.

Behind the scene, the entire system is powered by our own arbitration and network infrastructure. The robot is not controlled from a single computer.

The voice agent lives on one laptop. The ACT policies live on one laptop. The slider control lives on one laptop. MolmoACT2 lives on a H200 instance in Finland.

Through this project, we showcase how robotics is a systems problem, how humans can interact with robots, how we can deploy robots in the wild with LiveKit and how the future will look like.

Datasets

All datasets are LeRobotDataset v3.0 captures collected at SPC on the leslider rig (SO-101 follower on a linear slider). binhpham/spc-pick-stuff is the merged corpus used to train the pick_up ACT policy and the sparse-reward classifier.

Dataset	Object	Task	Episodes	Prompt	Visualize
binhpham/spc-pick-granola-bar	granola	pick	50	"pick up the granola bar and hold it"	view
binhpham/spc-pick-sharpie	sharpie	pick	50	"pick up the sharpie and hold it"	view
binhpham/spc-pick-screwdriver	screwdriver	pick	50	"pick up the screwdriver and hold it"	view
binhpham/spc-pick-stuff	all	pick	200		view
binhpham/spc-mock-put-down	nothing	put	50	"mock put down"	view
j1823/spc-pick-up-scissors	scissors	pick	50	"pick up scissors"	view

Models

Model	What	Trained on
binhpham/spc-pick-stuff-act	ACT policy that drives run_policy pick_up.	binhpham/spc-pick-stuff (the merged pick corpus).
binhpham/spc-pick-stuff-reward	Sparse-reward classifier that signals when the pick_up ACT policy is done.	binhpham/spc-pick-stuff.
binhpham/molmoact2-leslider	MolmoAct2 fine-tuned for the leslider rig. Powers run_molmo.	All SPC pick captures.

Priors

We built the below components before the hackathon:

• LiveKit Agents: our flagship voice agent orchestration platform.
• LiveKit Portal: our SDK for teleoperation and data collection on any robot. The backbone of this project. It lets operators and policies run on different computers in the same network without running into configuration or hardware hassle, and it makes data collection on a complex multi-machine system painless.
• LeSlider: a simple hardware extension to the SO-101 that we designed for fun and for desktop use cases like this.

Structure

• operators/: operators (policies, teleop, perception) that join the same Portal room.
• robot/: the robot runtime (drivers, scripts, and the Portal-published robot interface).
• orchestrator/: the voice agent that interprets user commands and dispatches operator RPCs.
• ui/: the web UI for talking to the orchestrator and watching the robot.
• utils/: dataset collection, dataset merging, and policy/reward training scripts.
• portal.yaml: Portal room configuration shared by the robot and operators.

Robot

robot/robot.py is the robot-side runtime. It connects to the physical leslider SO-101 follower and both cameras, joins the configured LiveKit room as robot, publishes state and video frames, and applies the latest incoming Portal action. If the active operator disconnects, the robot clears the active-operator slot so the arm does not keep holding a stale command.

cd robot && cp .env.example .env  # fill in LIVEKIT_* and LESLIDER_*
uv sync
uv run robot.py

portal.yaml defines the wire schema (two MJPEG camera streams, seven state fields, seven matching action fields). Hardware knobs live in env: LESLIDER_PORT, LESLIDER_ID, LESLIDER_CAM_ARM, LESLIDER_CAM_OVERHEAD, LESLIDER_CAM_WIDTH / LESLIDER_CAM_HEIGHT. First run may prompt for LeRobot calibration; calibration files are cached under ~/.cache/huggingface/lerobot/calibration/ keyed by LESLIDER_ID.

Orchestrator

orchestrator/src/agent.py is a LiveKit Agents voice agent. It joins the same room as the robot, subscribes to the overhead_camera track for visual context, and exposes a small toolset that dispatches operator RPCs:

• plan_and_execute: vision-grounded planner LLM that turns a free-form request ("get me the wrench") into a sequence of move_to + run_policy steps, then narrates progress aloud as each step runs.
• run_molmo: gated on the user explicitly naming MolmoAct. Forwards a prompt to run-molmo-operator.
• reset_pose / release_gripper: thin wrappers over the matching move-to-operator RPCs, triggered when the user asks the arm to park, go home, or let go.

cd orchestrator && uv sync
uv run python src/agent.py download-files  # one-off: pulls Silero VAD + turn-detector
uv run python src/agent.py dev             # use `console` for terminal, `start` for prod

Needs LIVEKIT_URL, LIVEKIT_API_KEY, LIVEKIT_API_SECRET in .env.local. The pipeline uses LiveKit Inference for STT (Deepgram Nova-3), TTS (Cartesia Sonic-3), and the planner / voice LLMs (OpenAI GPT). A Dockerfile is included for LiveKit Cloud deployment.

UI

ui/ is a Next.js web frontend (LiveKit Agents starter for React) that the user talks to. It mints a LiveKit token via app/api/, joins the same room as the orchestrator and robot, and renders the voice control bar, chat transcript, and remote media tiles. Branding, theme, and copy are configured in app-config.ts.

cd ui && pnpm install
pnpm dev

Needs LIVEKIT_URL, LIVEKIT_API_KEY, LIVEKIT_API_SECRET in .env.local so the token route can sign joins. The dev server runs at http://localhost:3000.

Operators

operators/run_policy

Identity: run-policy-operator. Target this when calling the RPC.

Drives the robot with pre-loaded ACT checkpoints. The RPC blocks until a "task done" signal fires (sparse-reward classifier and/or fixed duration), then parks. pick_up typically uses the reward classifier; put_down uses a fixed duration.

cd operators/run_policy && uv sync
uv run python run_policy_operator.py \
  --policy pick_up=/path/to/pick_up_ckpt \
  --policy put_down=/path/to/put_down_ckpt \
  --reward pick_up=/path/to/reward/best.pt \
  --duration put_down=4.0

Needs LIVEKIT_URL, LIVEKIT_ROOM, and Portal creds in env / .env.

Flags (all env-overridable):

flag	env	default
--policy NAME=PATH	PICK_UP_CHECKPOINT, PUT_DOWN_CHECKPOINT	none (≥1 required)
--reward NAME=PATH	PICK_UP_REWARD, PUT_DOWN_REWARD	none
--duration NAME=SECONDS	PICK_UP_DURATION, PUT_DOWN_DURATION	none
--reward-threshold	REWARD_THRESHOLD	0.7
--reward-trigger-ticks	REWARD_TRIGGER_TICKS	10 (~0.33 s @ 30 fps)
--reward-camera	REWARD_CAMERA	arm_camera
--default-policy	RUN_POLICY_DEFAULT	none (pre-warm only)
--no-temporal-ensemble / --temporal-ensemble-coeff	n/a	enabled / 0.01

A policy with neither --reward nor --duration returns immediately (status: "no_terminator"); the caller is on its own for completion detection.

RPC: run_policy(payload). Payload is "pick_up" or {"policy": "pick_up"}. Reply is a JSON string:

{
  "policy": "pick_up",
  "cameras": ["arm_camera"],
  "active_operator": "run-policy-operator",
  "status": "done",
  "reason": "reward",
  "reward_prob": 0.81,
  "ticks_above": 10
}

status is one of:

status	reason field	meaning
done	reward	reward streak hit --reward-trigger-ticks. Includes reward_prob, ticks_above.
done	timeout	fixed duration elapsed. Includes seconds.
no_terminator	n/a	neither reward nor duration attached; returned immediately.
preempted	n/a	another run_policy() took over. Includes by.
cancelled	n/a	operator shut down before any terminator fired.

Errors come back as RpcError: 1400 (bad payload) or 1404 (unknown policy).

operators/molmo

Identity: run-molmo-operator. Target this when calling the RPC.

Runs allenai/MolmoAct2-SO100_101 (or any compatible MolmoAct2 checkpoint) as a continuous policy. Forward passes produce 30-step action chunks (~1 s at 30 fps); the wrapper appends slider.vel = 0.0 so the slider parks while the arm runs autonomously. Best on a CUDA GPU (~16 GB VRAM in bfloat16); CPU/MPS work but are slow.

cd operators/molmo && uv sync
LESLIDER_TASK="Pick the blue cube up and hold it" \
uv run python molmo_operator.py

Needs LIVEKIT_URL, LIVEKIT_ROOM, and Portal creds in env / .env.

Flags (all env-overridable):

flag	env	default
--model	MOLMO_MODEL	allenai/MolmoAct2-SO100_101
--dtype	MOLMO_DTYPE	bfloat16 (float16, float32 also accepted)
--num-steps	MOLMO_NUM_STEPS	10 (flow-matching solver steps per chunk)
--warmup	MOLMO_WARMUP	2 (pre-connect forward passes to bake the CUDA graph)
--no-cuda-graph	n/a	CUDA-graph caching on by default (auto-disabled off-CUDA)
--no-normalize-language	n/a	task-string lowercase/trim-punct on by default
(default task)	LESLIDER_TASK	"Pick the blue cube up and hold it"

RPC: run_molmo(payload). Payload is "pick up the red cup" or {"prompt": "..."}. Retargets the running policy to the new prompt, drops the in-flight chunk so the change takes effect next tick, and self-claims active-operator. Returns immediately (no completion signal). Reply is a JSON string:

{ "prompt": "pick up the red cup", "active_operator": "run-molmo-operator" }

Errors come back as RpcError 1400 (bad JSON payload or empty prompt).

operators/move_to

Identity: move-to-operator. Target this when calling the RPCs.

Perception + classical control. Uses Moondream Cloud's point endpoint on the latest overhead_camera frame to locate the described object, then runs a bang-bang slider loop that drives an AprilTag (mounted on the slider) toward the target's pixel-X. Also exposes reset_pose (ramp arm joints back to a safe rest pose) and release_gripper (ramp gripper open while holding the arm steady). Each RPC self-claims active-operator, holds slider.vel = 0 on the arm-only moves, and releases on exit.

cd operators/move_to && uv sync
uv run python move_to_operator.py

Needs LIVEKIT_URL, LIVEKIT_ROOM, Portal creds, and MOONDREAM_API_KEY in env / .env.

Knobs (env-only):

env	default	purpose
SLIDER_APRILTAG_FAMILY	tag16h5	AprilTag family on the slider fiducial.
SLIDER_APRILTAG_ID	none	optional integer; if set, only that tag ID is accepted.
SLIDER_MOVE_VELOCITY	6000	bang-bang slider speed (raw motor units).
SLIDER_MOVE_THRESHOLD_PX	20	pixel tolerance on X.
SLIDER_MOVE_TIMEOUT_S	20	move loop timeout in seconds.
SLIDER_TAG_MISS_LIMIT	30	consecutive missing-tag ticks before bailing.
SLIDER_REACHED_HOLD_TICKS	3	in-window ticks required before declaring reached.
SLIDER_VEL_INVERT	false	flip the sign of slider.vel if the rig drives the wrong way.
SLIDER_TAG_OFFSET_X_PX	0	flat pixel offset from tag center to gripper center along X.
SLIDER_TAG_OFFSET_{NEAR,FAR}_{X_,}PX	none	optional two-point perspective calibration; overrides the flat offset when all four are set.
RESET_POSE_* (per joint)	rig-tuned	per-joint target angles for reset_pose.
RESET_POSE_MAX_STEP	2.0	per-tick command delta during the ramp.
RESET_POSE_TOLERANCE	5.0	per-joint convergence tolerance (degrees).
RESET_POSE_TIMEOUT_S	10	ramp loop timeout in seconds.

RPCs:

• move_to(payload): payload is "blue cube" or {"description": "blue cube"}. Blocks until the slider is centered on the object, the tag goes missing, the slider hits its safe pixel range, or the timeout elapses.
• reset_pose(): ignores payload. Ramps all 6 arm joints to the configured rest pose with slider.vel = 0.
• release_gripper(): ignores payload. Ramps gripper.pos open while mirroring the rest of the arm.

Reply is a JSON string. move_to returns:

{
  "description": "blue cube",
  "target": { "x": 0.43, "y": 0.61, "width": 640, "height": 480 },
  "reached": true,
  "reason": "reached",
  "iterations": 47,
  "elapsed_s": 1.57,
  "final_tag_x_px": 291.2
}

move_to reason values: reached, timeout, tag_lost, at_limit. reset_pose / release_gripper return target / final joint dicts plus reached, reason (reached or timeout), iterations, elapsed_s.

Errors come back as RpcError: 1400 (bad payload), 1404 (no overhead frame yet, or object not found), 1409 (no robot state yet), 1502 (Moondream API error).

operators/human

Identity: human-operator. No RPCs; control is local via hotkeys.

Teleop driver. Reads one action per tick from a physical SO-101 leader arm and forwards it to the wire. Observations stream into rerun so the operator can see the remote cameras while flying. Calibration happens on first connect and is cached under ~/.cache/huggingface/lerobot/calibration/.

cd operators/human && uv sync
uv run python human_operator.py

Needs LIVEKIT_URL, LIVEKIT_ROOM, Portal creds, and SO101_LEADER_PORT (serial port of the leader arm). Optional: SO101_LEADER_ID to key the calibration cache.

Hotkeys (local keyboard):

key	action
c	Cycle active-operator through [self, *remote_operators]. With no peers, toggles claim/release for self.
x	Clean quit.
← / →	Hold to drive slider velocity (handled by the leader's own listener).
↑ / ↓	Trim slider cruise speed.
space	Stop slider.

Actions are streamed every tick regardless of who is active; the robot side gates by sender, so takeover via c is instant.

Utils

Four standalone uv projects that produce the assets the operators above need: episodes for training, merged corpora, and trained ACT / reward / MolmoAct2 checkpoints. Each has its own pyproject.toml and README.md with the full knob list; the summaries below cover the happy path.

utils/data_collection

End-to-end teleop + recorder. A human flies the leslider with a local SO-101 leader and the recorder writes every executed action paired with its synchronized observation into a LeRobotDataset under data/<repo_id>/. Three terminals: robot.py on the leslider host, teleoperator.py on the operator desk, optionally an inference.py for an ACT or Diffusion policy that can take over via the c hotkey.

cd utils/data_collection && cp .env.example .env && uv sync
uv run robot.py            # terminal 1, leslider host
uv run teleoperator.py     # terminal 2, operator desk (SO-101 leader)

Hotkeys on the teleop window: c toggle active operator, r toggle recording, [ discard in-flight episode, x quit. Override the output repo with PORTAL_HITL_DATASET_REPO_ID / PORTAL_HITL_DATASET_ROOT. The same folder also ships ACT and Diffusion trainers under policies/<algo>/train.py (env-driven, optional SkyPilot YAMLs) and a scripts/deploy_to_robot.sh rsync helper. See utils/data_collection/tutorial/ for a walkthrough of the Portal patterns used here.

utils/merge_datasets

Concatenate multiple LeRobotDataset v3.0 directories produced by data_collection into a single training corpus, without re-encoding videos. Inputs must agree on fps, robot_type, feature dtypes/shapes, and video keys.

cd utils/merge_datasets && uv sync
uv run python merge_datasets.py \
    /path/to/dataset_a /path/to/dataset_b /path/to/dataset_c \
    --output /path/to/merged --repo-id you/your-merged-repo

Pass --overwrite to clobber the output dir. Also importable as from merge_datasets import merge_datasets.

utils/train_sparse_reward

Trains the sparse-reward classifier consumed by operators/run_policy (--reward NAME=PATH). Single-step inputs (one arm_camera frame + 7-d proprio), label is 1 for the last 15 frames of each episode (~0.5 s @ 30 fps), 0 elsewhere. ResNet18 + small MLP head.

cd utils/train_sparse_reward && uv sync
DATASET_REPO_ID=you/your-dataset \
DATASET_ROOT=../data_collection/data \
uv run python train.py

Checkpoints land in outputs/<RUN_NAME>/; best.pt is the one to point --reward at. Inference helper:

from inference import RewardScorer
scorer = RewardScorer.from_checkpoint("outputs/<run>/best.pt")
prob = scorer.score(rgb_uint8_hxwx3, state_7_floats)

utils/finetune_molmo

Fine-tunes allenai/MolmoAct2-SO100_101 on a data_collection-style dataset for use with operators/molmo. The trainer slices slider.vel out at the dataset boundary so the policy stays 6-DOF (the slider remains a human-teleop channel at inference time). Needs a CUDA box; full fine-tune is ~48 GiB at batch_size=8, action-expert-only fits a single H100 at ~16 GiB.

cd utils/finetune_molmo && uv sync
DATASET_REPO_ID=you/your-dataset \
DATASET_ROOT=$(pwd)/../data_collection/data/you/your-dataset \
OUTPUT_ROOT=$HOME/outputs \
uv run python train.py

Cloud-GPU shortcut: sky launch -c finetune-molmo skypilot.yaml --env DATASET_REPO_ID=.... Set TRAIN_ACTION_EXPERT_ONLY=1 to freeze the VLM/vision tower for smaller GPUs; set ENABLE_LORA_VLM=1 to LoRA-adapt the VLM.
